MainStage Mondays: Muting Midi Messages

I recently had several of you write me about how to mute midi messages from controller keyboards. While there’s not a single way to do this quickly in MainStage, there is a workaround that accomplishes the same goal. Here’s how to do it:

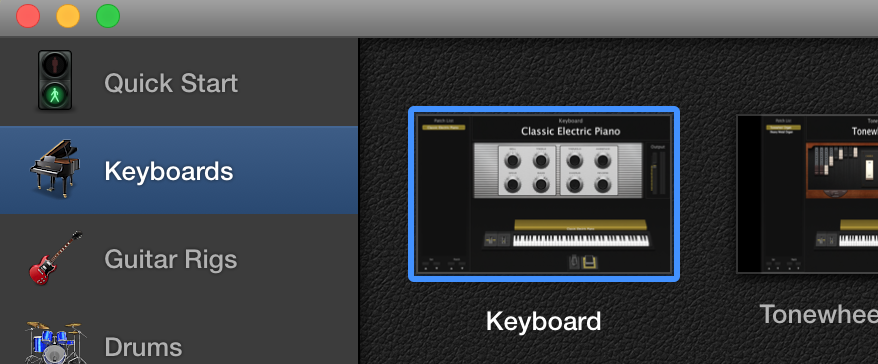

1. Open MainStage. Select a project.

Screen Shot 2016-05-30 at 3.40.11 PM.png

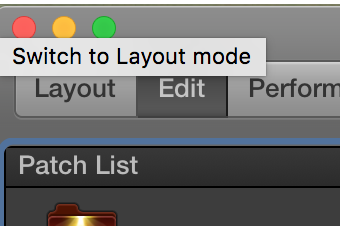

2. Go to Layout Mode.

Screen Shot 2016-05-30 at 3.40.23 PM.png

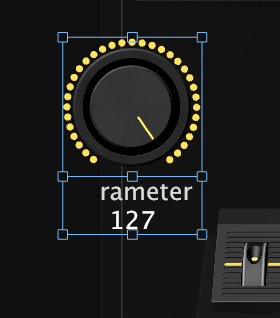

3. Drag in a knob, button, or fader.

Screen Shot 2016-05-30 at 3.40.52 PM.png

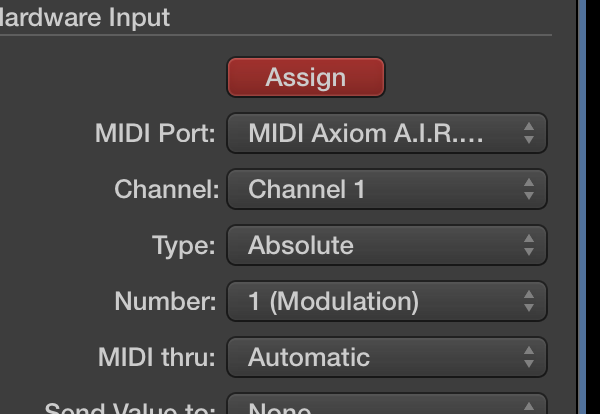

4. Under the screen control inspector on the LH corner of the screen, click the “Assign” button and move the midi controller you want to mute.

Screen Shot 2016-05-30 at 3.42.17 PM.png

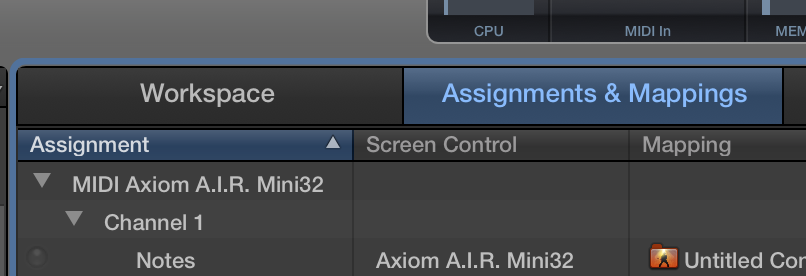

5. Go back to Edit Mode, then select “Assignments and Mappings”. Move the controller again to see it highlighted in blue.

Screen Shot 2016-05-30 at 3.42.17 PM.png

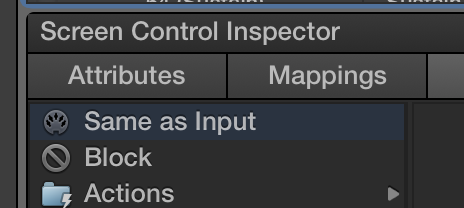

6. Under the Screen Control Inspector, select “Block”.

Screen Shot 2016-05-30 at 3.44.17 PM.png



This will keep it from sending any data to any of the parameters in your project.
